Small Form Factor Intel 14th Gen Core i5 10 Core 4.70GHz Home / Office PC with 16GB RAM

Overview

The Ideal Home PC for Power and Discretion. Whether it’s work, school, or entertainment, the SF-V56W6 offers a powerful, secure, and compact computing solution tailored for today’s home user.

Powerful, Compact, and Built for Everyday Use

The SF-V56W6 is a discreet, small form factor PC designed to deliver powerful performance in a compact package. Perfect for home users juggling large reports, online meetings, browsing, and entertainment, this PC offers reliable speed and ample storage without taking up much desk space.

Efficient Performance for All Your Needs

Powered by a 14th Gen Intel Core i5 processor with 10 cores and 16 threads, running from 3.50GHz up to 4.70GHz turbo boost, this PC handles multitasking and demanding applications smoothly. With 16GB of Kingston DDR4 memory and a 1TB PCIe 4.0 NVMe SSD, it loads programs quickly and manages large files with ease.

Quality Craftsmanship and Long-Term Reliability

Hand-built in the UK using world-renowned components, this PC is designed for durability and future-proofing. It comes with a 3-year warranty, ensuring years of reliable, secure use.

Product Description

Intel Core i5 14400 10 Core Processor 16 Threads, 3.5GHz up to (4.7GHz Boost), 16GB DDR4 RAM, 1TB Kingston NVMe M.2, SFF Chassis - Pre-Built PC.

Processor

Intel Core i5 14400 10 Core Processor 16 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 20MB Cache.

Processor Cores

10

Processor Threads

16

Core Clock Speed

3.50GHz

Core Boost Speed

4.70GHz

Memory

• Kingston Technologies RAM 16GB No Heatsink DDR4 3200MHz System Memory
• Voltage: 1.20V
• Latency Timing: CL22
• Speed: 3200MHz (PC4-25600)
• 2 x 8GB DIMM Memory
• Intel XMP Profile Support

Memory Configuration

• 2 x 8GB
• 2 Lanes (2 occupied)

SSD Drive

Kingston NV3 (SNV3S/1000G) 1TB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 6000 MB/s, Write 4000 MB/s. Data storage life. 160 TBW MTBF 1,500,000 hours. Interfaces/Ports. PCIe Gen4 x4 NVMe.

Format

Gen4 x4 NVMe.

Max Read/Write Speeds

Read: Up to 6000MB/S. Write: Up to 4000MB/S.

Hard Drive

No Additional Drive Fitted.

Optical Drive

No Optical Drive Fitted.

Graphics

• Intel UHD Graphics 730
• Graphics Base Frequency
• 300 MHz
• Graphics Max Dynamic Frequency
• 1.40 GHz
• Graphics Output
• eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units
• 32
• Max Resolution (HDMI)
• 4096 x 2160 @ 60Hz
• Max Resolution (DP)
• 7680 x 4320 @ 60Hz

Graphics Card I/O

No Graphics Card Fitted. Uses Intel On-Chip Graphics.

Operating System

No O/S.

Card Reader

No Card Reader Fitted.

Networking

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

2.4 GHz 11ax: Up to 574 Mbps(dynamic). 11n: Up to 300 Mbps(dynamic). 11g: Up to 54 Mbps(dynamic). 11b: Up to 11 Mbps(dynamic).

Power Supply

be quiet! 300W TFX.

Motherboard

ASUS Prime H6101-Plus-CSM, Intel H610 (LGA 1700) Mini-ITX motherboard with DDR5 5600, PCIe 4.0, M.2 slot, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub.

Expansion Slot

• CPU:
• 1 x PCIe 4.0 x16 slot

Storage

• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors

Rear I/O

• x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI™ port
• 1 x V-M.2 slot (Key E)
• 1 x Intel
• 1x 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin Chassis Fan header
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x Mono-out header(with Amp IC)
• 1 x SMBUS header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

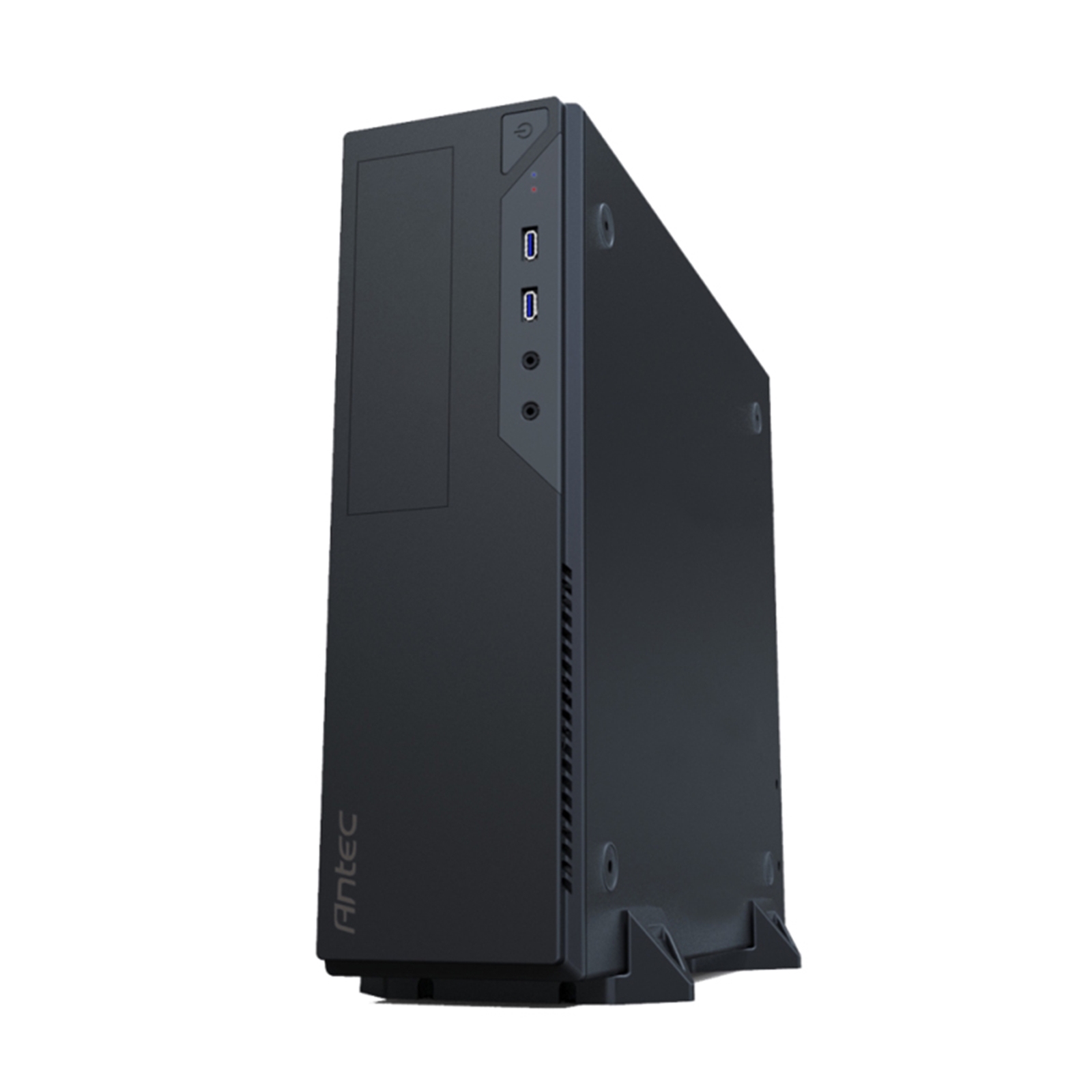

Chassis

Antec VSK2000-U3 Micro Tower Slim Case.

Drive Bays

• 5.25" x 1
• 3.5" x 1
• 2.5" x 1

IO Ports

2 x USB 3.0. HD Mic. HD Audio. Power.

Cooling

1 x 92mm fan included.

Dimensions

356mm (D) x 338 mm (W) x 102 mm (H).

Package Weight

5.8 kg.

Warranty

3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only).

Warranty Information:
Please note: Any warranty information on this page relates to manufacturer's warranty, which may require you to deal directly with the manufacturer directly.

SimplyFixIt offer a 1-year return-to-shop warranty on all new products listed here.
