RGB Gaming Build AMD Ryzen 5 5500 6 Core 12 Thread 4.20GHz

Overview

Powered by Deep Cool, ADATA and Gigabyte. This Entry level gaming build comes with RGB lighting, 6 Core, a TB fast of storage, 16GB of ADATA DDR4 RAM and RTX5050 8GB Graphics

Product Description

RGB Gaming Build AMD Ryzen 5 5500 6 Core 12 Thread 4.20GHz, 16GB DDR4 RAM, 1TB NVMe Storage, RTX5050 8GB, RGB Air Cooler CPU, Pre-Built

Processor

AMD Ryzen 5 5500 6 Core AM4 Processor, 12 Threads, 3.6GHz up to 4.2GHz Boost, 19MB Cache

Processor Cores

6

Processor Threads

12

Core Clock Speed

3.600GHz

Core Boost Speed

4.20GHz

CPU Cooler

DeepCool AG400 Black ARGB V2 CPU Air Cooler, 120mm PWM Fan, 4 Direct Touch Heat Pipes, Addressable RGB, LGA1851/1700/1200, AM5/AM4 Compatible, High-Performance Single Tower Cooler

Memory

2 x ADATA Premier AD4U32008G22-BGN 8GB (1x 8GB) DIMM System Memory, 3200MHz, DDR4, CL22

Memory Configuration

2 x 8GB
2 Lanes (2 occupied)

SSD Drive

Adata Legend 860 (SLEG-860-1000GCS) 1TB NVMe SSD, PCIe Gen4, M.2 Interface, 2280, Read 5000 MB/s, Write 3000 MB/s

Format

NVMe M.2

Max Read/Write Speeds

Read: Up to 5000MB/S
Write: Up to 3000MB/S

Hard Drive

N/A

Optical Drive

N/A

Graphics

Gigabyte NVIDIA GeForce RTX 5050 WINDFORCE OC 8GB, GDDR6 Graphics Card, 2560 Cuda Core, 2587MHz Core Clock, Windforce cooling system, Dual Fan
Core Clock
2587 MHz (Reference card : 2572MHz)
CUDA Cores
2560
Memory Clock
20 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4

Graphics Card I/O

DisplayPort 1.4a x 2
HDMI 2.1a x 2

Operating System

Microsoft Windows 11 Ready (Not Installed or provided)

Card Reader

N/A

Networking

LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps)

Power Supply

DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug, Flat Black Cables
1 x Main Power Connector 24-Pin (20+4)
1 x EPS 12V Connector 8-Pin (4+4)
2 x PCIE 6+2 Pin (x1)
6 x SATA (x2)
2 x 4-Pin Peripheral (x2)

Motherboard

Gigabyte A520M K V2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN

Expansion Slot

CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage

CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Rear I/O

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

Chassis

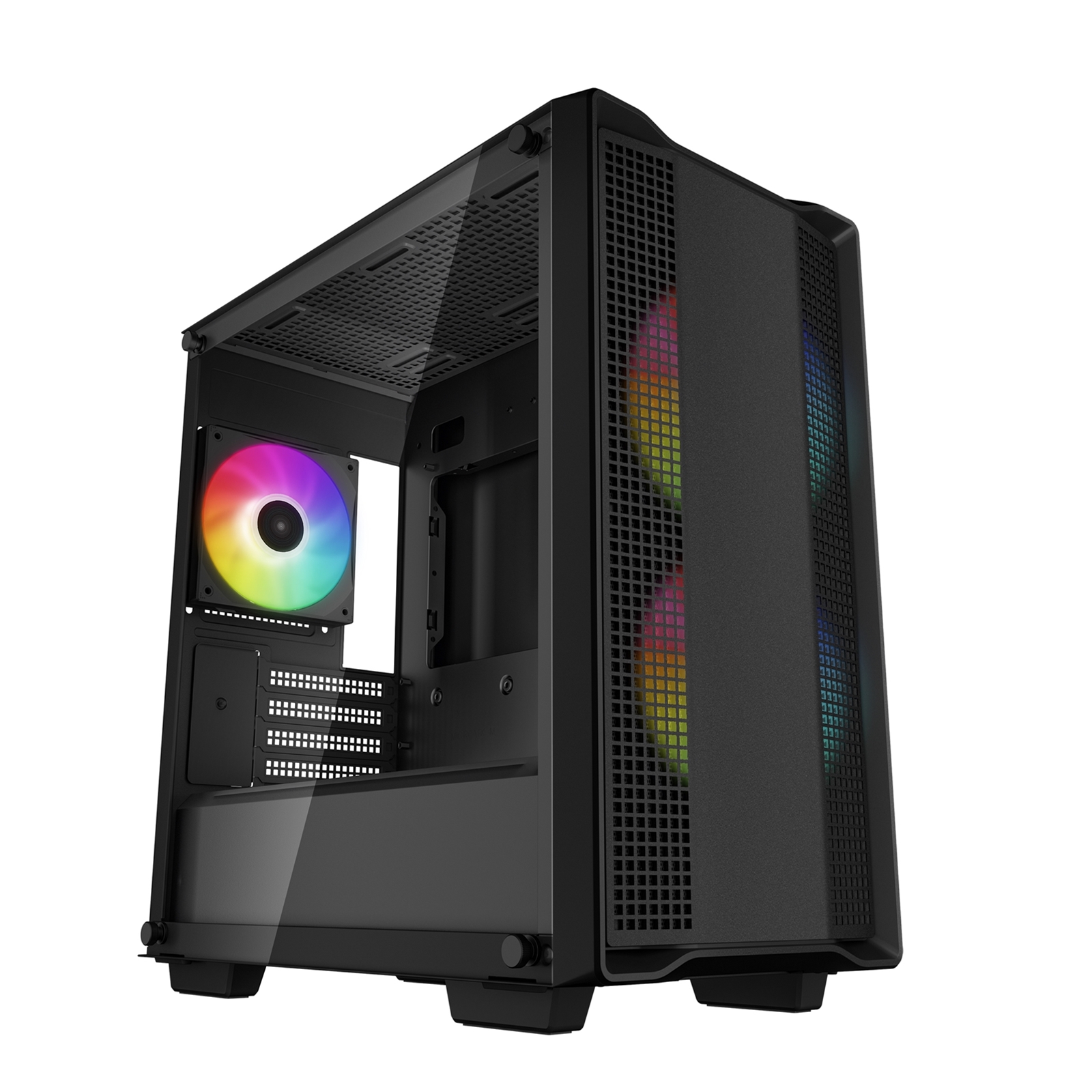

DeepCool CC360 ARGB, Black, Mini Tower Chassis w/ Tempered Glass Window, 3x 120mm ARGB Fans, USB 3.0, mATX/mITX

Drive Bays

2 x 3.5" Drive Bays
2 + 1 x 2.5" Drive Bays

IO Ports

USB 3.0 x 1
USB 2.0 x 1
Audio x 1

Cooling

Pre-Installed Fans
Front: 2 x 120mm
Rear: 1 x 120mm

Fan Support
Front: 3 x 120 / 2 x 140mm
Top: 2 x 120 / 2 x 140mm
Rear: 1 x 120mm
PSU Shrouded: 2 x 120mm

Radiator Support
Front: 120/140/240/280/360mm
Top: 120/140/240mm
Rear: 120mm

Dimensions

418 x 215 x 431mm (L x W x H)

Package Weight

12.40 kg

Warranty

3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)

Warranty Information:
Please note: Any warranty information on this page relates to manufacturer's warranty, which may require you to deal directly with the manufacturer directly.

SimplyFixIt offer a 1-year return-to-shop warranty on all new products listed here.
