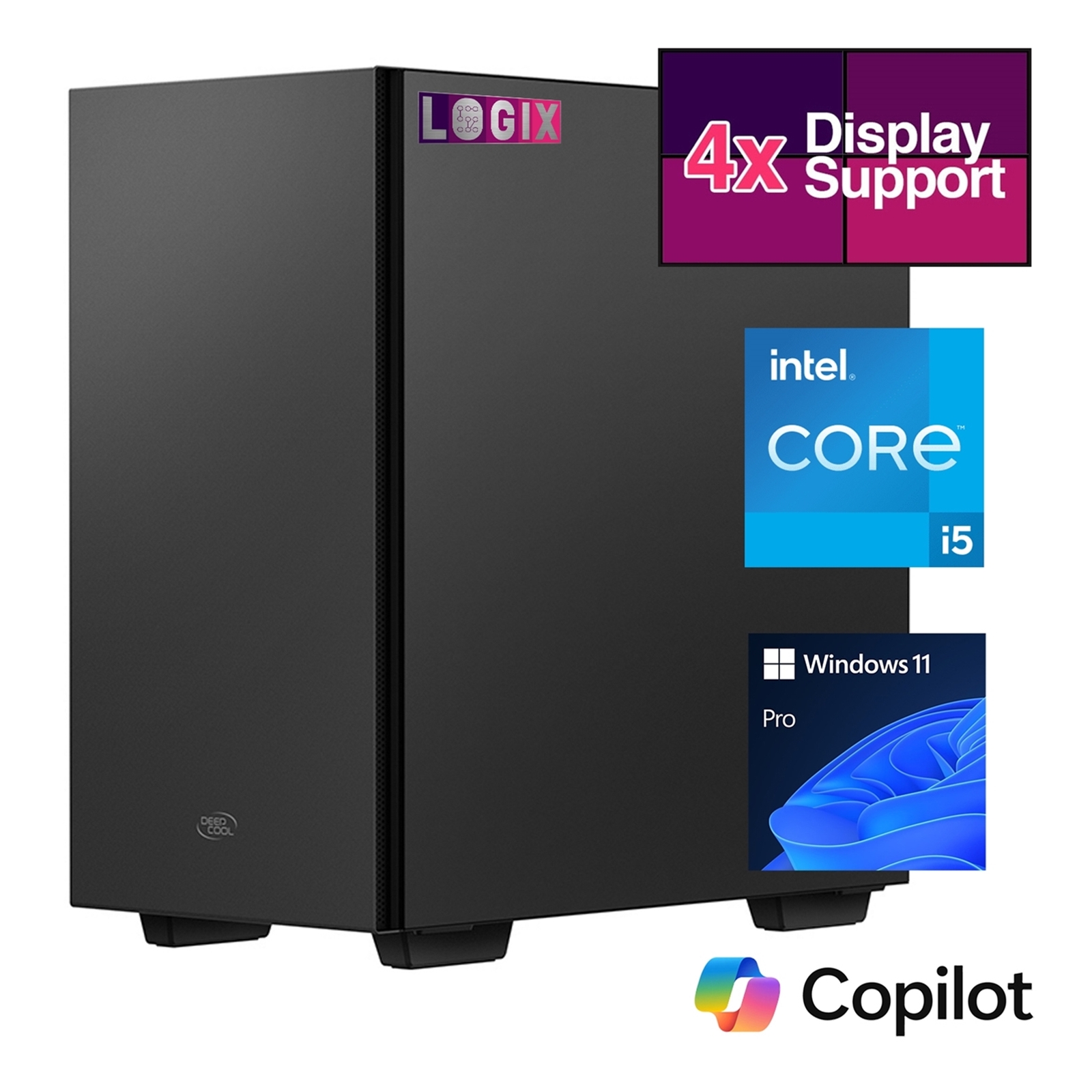

LOGIX Micro Tower - Designed for CCTV Use - Intel i5 Processor

Overview

The LOGIX CCT-V5M7 is not just a security monitoring station — it’s a versatile, quiet, and robust PC that adapts to your daily needs. Whether you're managing a CCTV system, attending video meetings, working with large files, or multitasking across multiple screens, this PC provides reliable power, future-proof design, and enterprise-grade stability.

All-in-One Powerhouse for Home, Business, and CCTV Monitoring

The LOGIX CCT-V5M7 is a discreet, high-performance PC built for professionals who need reliable multitasking power for home office productivity and advanced CCTV monitoring. Housed in a DeepCool micro tower case designed for quiet operation and excellent airflow, it delivers full-day performance without the noise — making it ideal for use in living or working environments.

Built for CCTV, Ready for Business

Designed with security systems in mind, this system supports up to 16 cameras in up to 8K resolution across four monitors, making it an excellent solution for video surveillance, monitoring, and recording. Whether you're managing security feeds or switching to business tasks like reports, spreadsheets, or remote meetings, the LOGIX CCT-V5M7 handles it all with ease.

Exceptional Performance with 12th Gen Intel & DDR5 Memory

Powered by a 12th Gen Intel Core i5 processor with 6 cores and 12 threads, this PC offers smooth and responsive performance for multi-app workflows. Coupled with 16GB of Kingston DDR5 memory, it ensures faster data transfer and responsiveness than previous-gen systems. Plus, there's room to expand if your workload increases.

High-Speed Storage & Future-Proof Graphics

The included 500GB Kingston PCIe 4.0 NVMe SSD provides lightning-fast boot times and rapid data access. Need more storage? This PC supports up to 4 SSDs or HDDs, offering flexibility for larger CCTV video files or business data. The Gigabyte NVIDIA GeForce RTX 3050 graphics card with dual fans and 4 display outputs (2x HDMI, 2x DisplayPort) enables multi-monitor setups in 720p to 8K resolutions — perfect for monitoring, design, or data-heavy applications.

Ready to Use, Right Out of the Box

Preinstalled with Windows 11 Pro (fully updated and bloatware-free), your system is ready for immediate deployment. A Logitech MK120 keyboard and optical mouse are included, so you can plug in and get to work straight away — no setup headaches or unnecessary software slowing you down.

Built in the UK – Reliable, Quiet, and Long-Lasting

This PC is hand-built in the UK using premium components from globally recognized brands, ensuring durability, quality, and peace of mind. Backed by a 3-year parts and collection warranty, you’re fully covered in case of any issues — we’ll either collect and repair your PC or send you a replacement part with no hassle.

Key Features

Processor: Intel Core i5 12th Gen (6 cores / 12 threads, 2.50GHz base, up to 4.40GHz Turbo). Memory: 16GB DDR5 Kingston (expandable). Storage: 500GB Kingston PCIe 4.0 NVMe SSD (expandable up to 4 drives). Graphics: NVIDIA GeForce RTX 3050 (2x HDMI, 2x DisplayPort, up to 8K output). Case: DeepCool micro tower – quiet and airflow-optimized. Connectivity: Gigabit Ethernet (wired). Operating System: Windows 11 Pro (preinstalled, updated, bloatware-free). Display Support: Up to 4 monitors / 16 CCTV camera feeds in 8K. Included Accessories: Logitech MK120 keyboard + mouse. Warranty: 3-Year parts and collection warranty. Build Location: Hand-built in the UK.

Specification:

Operating System: Windows 11 Pro. Processor: 12th Gen Intel Core i5-12400 2.5GHz (4.40GHz boost) 6-cores & 12 threads. Memory (RAM): Kingston Technology 16GB DDR5 (upgradeable to 64GB DDR5 – additional memory slot available). Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD. Storage Expansion: 2 x 3.5"/2.5" Combo & 2 x 2.5" Graphics: Gigabyte Nvidia GeForce RTX 3050 8GB Dual Fan Graphics Card with 2 x HDMI 2.1 & 2 x DisplayPort 1.4 ports. Motherboard: Gigabyte H610M K V2 DDR5. Case: Deep Cool micro tower. Connections: Front – 2 x USB 3.0. 1 x HD Mic/Audio. Back: 1 x PS/2 keyboard port. 1 x PS/2 mouse port. 1 x D-Sub port. 2 x DisplayPort. 2 x HDMI port. 2 x USB 3.2 Gen 1 ports. 4 x USB 2.0/1.1 ports. 2 x RJ-45 port. 3 x audio jacks.

Networking:

• Wired: Realtek 1Gbps GbE LAN + 1GB LAN TP Link
• Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
• Warranty: 3 years - parts and collection included (UK mainland only)

Processor

Intel Core i5 12400F 6 Core Processor 12 Threads, 2.5GHz up to 4.4Ghz Turbo, Alder Lake Socket LGA 1700, 18MB Cache.

Processor Cores

6

Processor Threads

12

Core Clock Speed

2.50GHz

Core Boost Speed

4.40GHz

Security & Reliability

• Intel Standard Manageability (ISM) : Yes
• Intel Control-Flow Enforcement Technology : Yes
• Intel AES New Instructions : Yes
• Secure Key : Yes
• Intel OS Guard : Yes
• Intel Trusted Execution Technology : Yes
• Execute Disable Bit : Yes
• Intel Boot Guard : Yes
• Mode-based Execute Control (MBEC) : Yes
• Intel Virtualization Technology : Yes

Memory

• Kingston 16GB (1 x 16GB) 5600MTs DDR5 DIMM System Memory Black Heatsink
• Voltage: 1.1V
• Latency Timing: CL46
• Speed: 5600MTs
• 1 x 16GB DIMM Memory
• Intel XMP Profile Support

Memory Configuration

• 1 x 16GB
• 2 Lanes (1 occupied)

SSD Drive

Kingston NV3 (SNV3S/500G) 500GB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 3000 MB/s, Write 1300 MB/s. Data storage life. 320 TBW MTBF 1,500,000 hours. Interfaces/Ports. PCIe Gen4 x4 NVMe.

Format

Gen4 x4 NVMe.

Max Read/Write Speeds

Read: Up to 6000MB/S. Write: Up to 2200MB/S.

Hard Drive

• No Additional Drive Fitted
• 2 x 2.5" or 3.5" Drive Bays Available For Expansion

Optical Drive

No Optical Drive Fitted.

Graphics

Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 8GB GDDR6 Graphics Card, 2560 CUDA Cores, 1792 MHz Core Clock, Dual Fan, 2x DisplayPorts / 2x HDMI.

Core Clock. 1792 MHz (Reference Card: 1777 MHz). CUDA Cores. 2560 Memory Clock. 14000 MHz. Memory Size. 8 GB Memory Type. GDDR6 Memory Bus. 128 bit. Card Bus. PCI-E 4.0. Digital max resolution. 7680 x 4320. Multi-view. 4

Graphics Card I/O

• DisplayPort 1.4a x 2
• HDMI 2.1 x 2

Operating System

Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date.

Card Reader

No Card Reader Fitted.

Networking

• 1 x Realtek GbE LAN chip (1 Gbps/100 Mbps) on motherboard
• 1 x TP-Link TG-3468 Gigabit PCI Express Network Adapter

Power Supply

• DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug, Flat Black Cables, Efficient & Affordable
• 1 x Main Power Connector 24-Pin (20+4)
• 1 x EPS 12V Connector 8-Pin (4+4)
• 2 x PCIE 6+2 Pin (x1)
• 6 x SATA (x2)
• 2 x 4-Pin Peripheral (x2)

Motherboard

Gigabyte H610M K V2 DDR5 Intel Socket 1700 Micro ATX Motherboard, PCIe 4.0 Design, Gen3 x4 M.2 ,GbE LAN ,Anti-Sulfur Resistor, Smart Fan 6.

Expansion Slot

• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage

• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
• 2 x SATA 6Gb/s connectors

Rear I/O

• 1 x HDMI port
• 1 x DisplayPort
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Internal I/O

1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 1 x system fan header. 1 x M.2 Socket 3 connector. 2 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x USB 3.2 Gen 1 header. 1 x USB 2.0/1.1 header. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only). 1 x Clear CMOS jumper.

Chassis

DeepCool MACUBE 110 Case, Home & Business, Black, Micro Tower, 2 x USB 3.0, Solid Side.

Drive Bays

Internal 3.5": 2. Internal 2.5": 2. External 3.5": 0. External 5.25": 0.

IO Ports

2 x USB 3.0. 1 x Audio. Power. Reset.

Cooling

• Front: 3 x 120mm / 2 x 140mm
• Top: 2 x 120mm / 2 x 140mm
• Rear: 1 x 120mm DC fan (Pre-installed)

Dimensions

400mm x 225mm x 431mm

Package Weight

6.9 kg.

Warranty

3 Years Parts & Labour Including Collect and Return (UK mainland only).

Warranty Information:
Please note: Any warranty information on this page relates to manufacturer's warranty, which may require you to deal directly with the manufacturer directly.

SimplyFixIt offer a 1-year return-to-shop warranty on all new products listed here.
