Intel i3 12th Gen 4 Core 8 Threads 3.30GHz (4.30GHz Boost) 8GB ADATA DDR4 RAM

Overview

Entry Level intel Quad Core Office and Home PC. Perfect for emails, browsing the internet, videos and basic gaming.

The Intel Core i3 processor is the perfect entry point for a fast, responsive PC experience. Do not let too many open applications slow you and your PC down. Get smart performance now.

• Intel smart cache
• Intel smart cache is shared cache dynamically allocated to each processor core, based on workload. This efficient, dual-core-optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance.

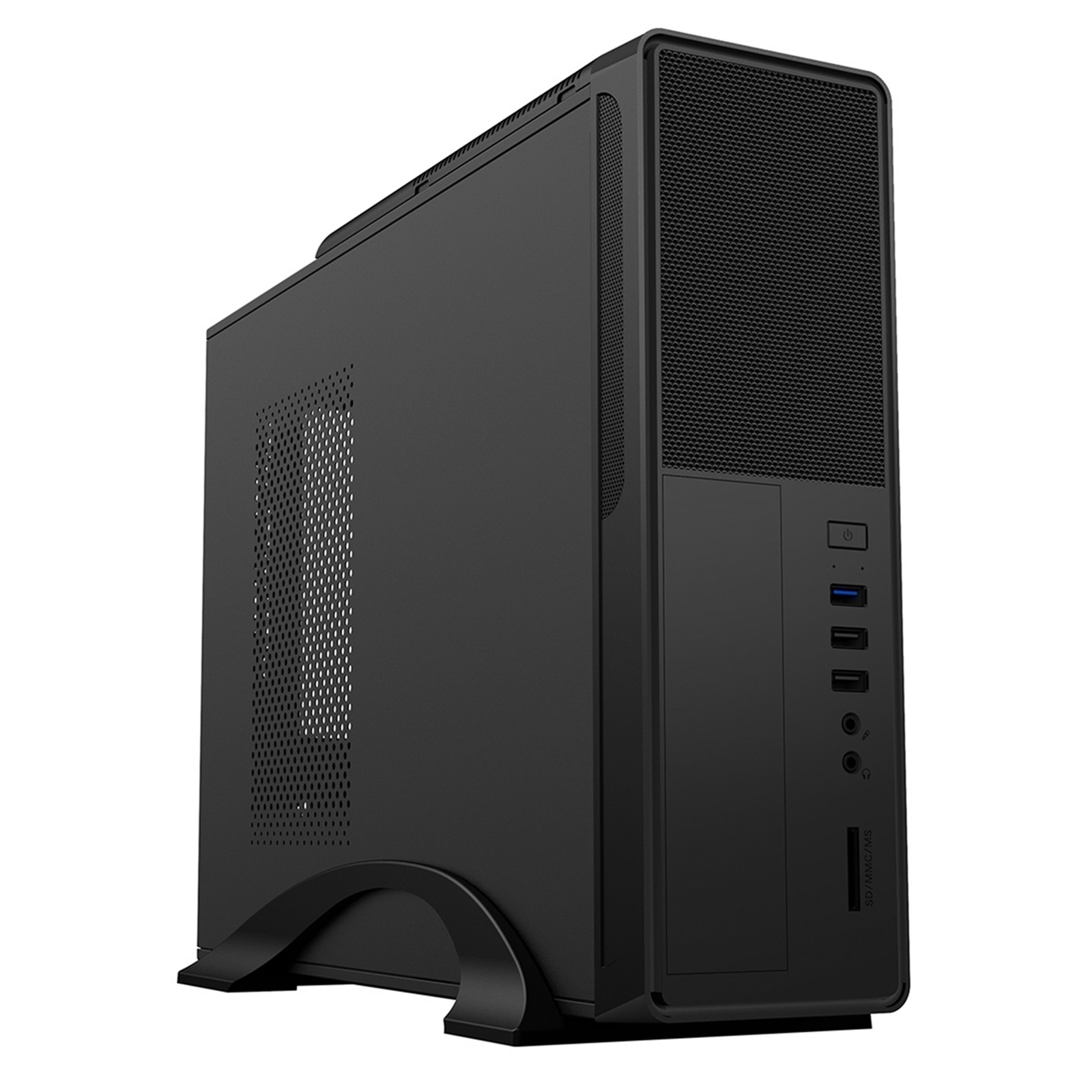

CiT S014B micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.

Product Description

Intel i3 12th Gen 4 Core 8 Threads 3.30GHz (4.30GHz Boost) 8GB ADATA DDR4 RAM, 515GB ADATA NVMe WiFi , - Small Form Factor Case - Pre-Built System.

Processor

Intel Core i3 12100 4 Core Processor 8 Threads, 3.3GHz up to 4.3GHz Turbo, Alder Lake Socket LGA 1700, 12MB Cache, 60W, Maximum Turbo Power 89W, Intel UHD 730 Graphics.

Processor Cores

4

Processor Threads

8

Core Clock Speed

3.30GHz

Core Boost Speed

4.60GHz

Memory

Adata Premier AD4U32008G22-BGN 8GB DIMM System Memory, DDR4, 3200MHz, 1 x 8GB

Memory Configuration

• 1 x 8GB
• 2 Lanes (2 occupied)

SSD Drive

Adata Legend 710 (ALEG-710-512GCS) 512GB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 2400MB/s, Write 1600MB/s.

Format

NVMe M.2.

Max Read/Write Speeds

Read: Up to 2400MB/S. Write: Up to 1600MB/S.

Hard Drive

N/A.

Optical Drive

None.

Graphics

• Processor Graphics
• Intel UHD Graphics 730
• Graphics Base Frequency
• 300 MHz

• Graphics Max Dynamic Frequency
• 1.40 GHz

Graphics Card I/O

N/A.

Operating System

No O/S.

Card Reader

Built-in Card Reader - SD/MMC/MS 3in1.

Networking

Prevo 300mbps N300 PCI Express Wireless Adapter. Antenna Type: Omni Directional (RP-SMA) 2 x 2dBi Antennas. Wireless Channel: 2T2R MIMO Support. Wireless Standards: IEEE 802.110, IEEE 802.11g, IEEE 802.11b. Frequency: 2.412 - 2.472GHz Signal Rate: 110 300Mbps, 11g 54Mbps, 11b 111Mbps. Wireless Security: Supports 64/128bitWEP, WPA-PSK, WPA2-PSK.

Power Supply

• 300W Micro ATX PSU
• 20 + 4 Pin ATX: 1
• +12V 4 Pin CPU: 1
• 4 Pin Molex: 2
• SATA: 3
• FDD: 1

Motherboard

Gigabyte H610M H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port.

Expansion Slot

• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage

• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
• support)
• 4 x SATA 6Gb/s connectors

Rear I/O

1 x PS/2 keyboard/mouse port. 1 x D-Sub port. 1 x HDMI port. 2 x USB 3.2 Gen 1 ports. 4 x USB 2.0/1.1 ports. 1 x RJ-45 port. 3 x audio jacks.

Internal I/O

1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 2 x system fan headers. 1 x M.2 Socket 3 connector. 4 x SATA 6Gb/s connectors. 1 x RGB LED strip header. 1 x front panel header. 1 x front panel audio header. 1 x speaker header. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only). 1 x serial port header. 1 x Clear CMOS jumper. 1 x chassis intrusion header.

Chassis

CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU.

Drive Bays

• 1 x 5.25" External
• 2 x 3.5" Internal
• 2 x 2.5" Internal
• (1 x 2.5" uses a 3.5" bay)

IO Ports

1 x USB 3.0. 2 x USB 2.0. 1 x HD Audio (Also Supports AC'97). 1 x Microphone. SD/TF Card Reader Included (Built-in).

Cooling

Cooling Front: None. Cooling Top: Space For 1 x 80mm Fan (inc.). Cooling Rear: None. Cooling Side: Vent. Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD.

Dimensions

100 x 306 x 403mm

Package Weight

5.3 kg.

Warranty

3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only).

Warranty Information:
Please note: Any warranty information on this page relates to manufacturer's warranty, which may require you to deal directly with the manufacturer directly.

SimplyFixIt offer a 1-year return-to-shop warranty on all new products listed here.
