Intel i5 12th Gen 6 Core 12 Threads 2.50GHz (4.40GHz Boost) 16GB ADATA DDR4 RAM

Overview

Mid Level intel 6 Core Office and Home PC. Perfect for emails, browsing the internet, videos and basic gaming

The 12th Generation of Intel® Core™ Processors are here! The i5-12400 allows you to compete with confidence or get immersed in new worlds with a revolutionary processor architecture that focuses on what matters more - Gaming! This processor is able to give you excellent performance. The 12th Generations CPU's are compatible with most 600 series motherboards and support PCIe Gen 5, you can also take advantage of DDR5 memory and great features like Intel Turbo Boost Max Technology 3.0..

Intel smart cache
Intel smart cache is shared cache dynamically allocated to each processor core, based on workload. This efficient, dual-core-optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance.

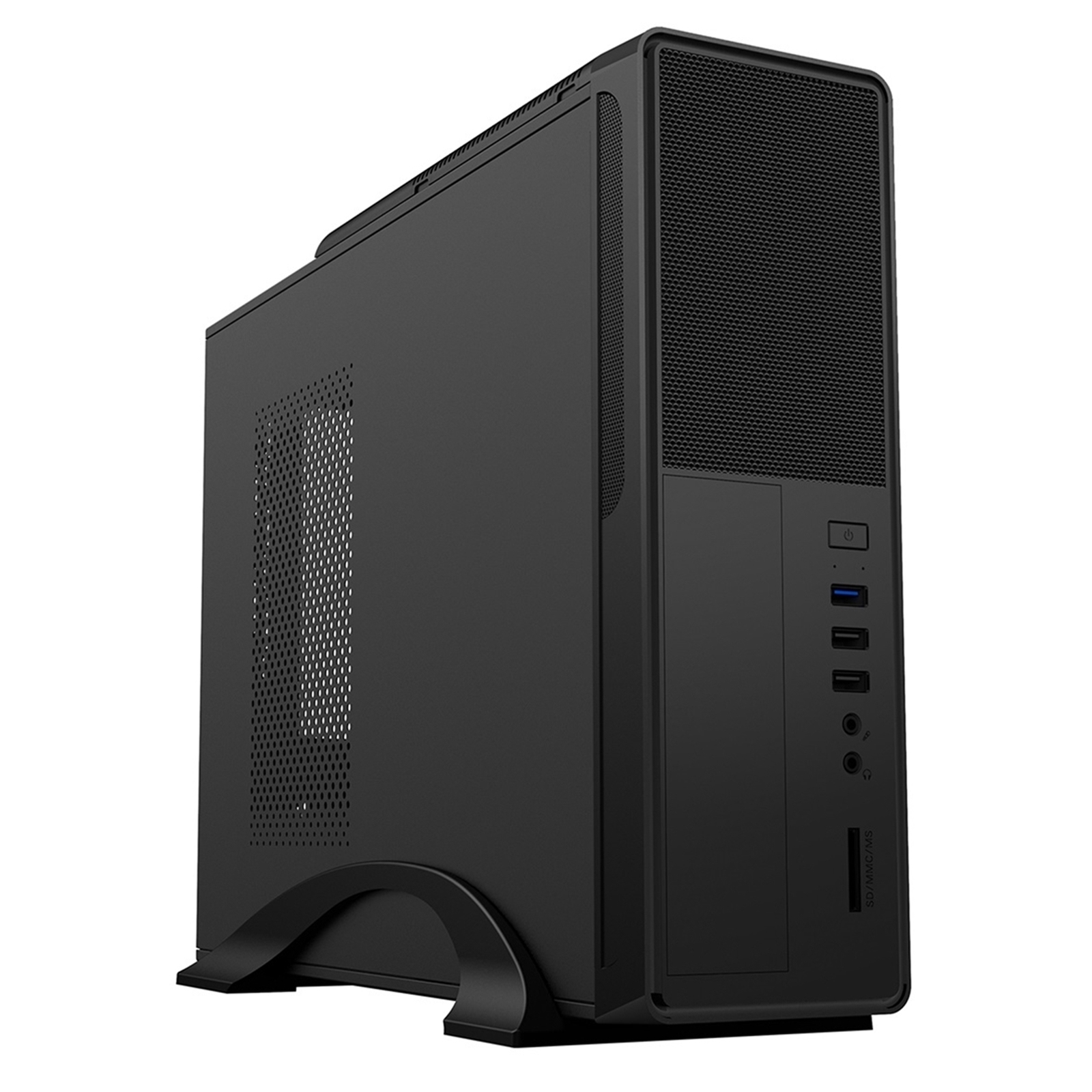

CiT S014B micro slim case, is a case with a very compact design. Allowing you to save desk space, the S014B front panel is made with mesh details, along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU, it helps to provide the best performance business PC system.

Product Description

Intel i5 12th Gen 6 Core 12 Threads 2.50GHz (4.40GHz Boost) 16GB ADATA DDR4 RAM, 512GB ADATA NVMe WiFi , - Small Form Factor Case - Pre-Built System

Processor

Intel Core i5 12400 6 Core Processor 12 Threads, 2.5GHz up to 4.4GHz Turbo, Alder Lake Socket LGA 1700 18MB Cache, 65W, Maximum Turbo Power 117W, Intel UHD 730 Graphics

Processor Cores

6

Processor Threads

12

Core Clock Speed

2.50GHz

Core Boost Speed

4.40GHz

Memory

ADATA Premier AD4U320016G22-BGN 16GB (1x 16GB) DIMM System Memory, 3200MHz, DDR4, CL22

Memory Configuration

1 x 16GB
2 Lanes (1 occupied)

SSD Drive

Adata Legend 710 (ALEG-710-512GCS) 512GB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 2400MB/s, Write 1600MB/s

Format

NVMe M.2

Max Read/Write Speeds

Read: Up to 2400MB/S
Write: Up to 1600MB/S

Hard Drive

N/A

Optical Drive

None

Graphics

Processor Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz

Graphics Max Dynamic Frequency
1.40 GHz

Graphics Card I/O

N/A

Operating System

No O/S

Card Reader

Built-in Card Reader - SD/MMC/MS 3in1

Networking

Prevo 300mbps N300 PCI Express Wireless Adapter
Antenna Type: Omni Directional (RP-SMA) 2 x 2dBi Antennas
Wireless Channel: 2T2R MIMO Support
Wireless Standards: IEEE 802.110, IEEE 802.11g, IEEE 802.11b
Frequency: 2.412 - 2.472GHz
Signal Rate: 110 300Mbps, 11g 54Mbps, 11b 111Mbps
Wireless Security: Supports 64/128bitWEP, WPA-PSK, WPA2-PSK

Power Supply

300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Motherboard

Gigabyte H610M H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port

Expansion Slot

CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage

Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
support)
4 x SATA 6Gb/s connectors

Rear I/O

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

Chassis

CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU

Drive Bays

1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

IO Ports

1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Cooling

Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

Dimensions

100 x 306 x 403mm

Package Weight

5.3 kg

Warranty

3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
