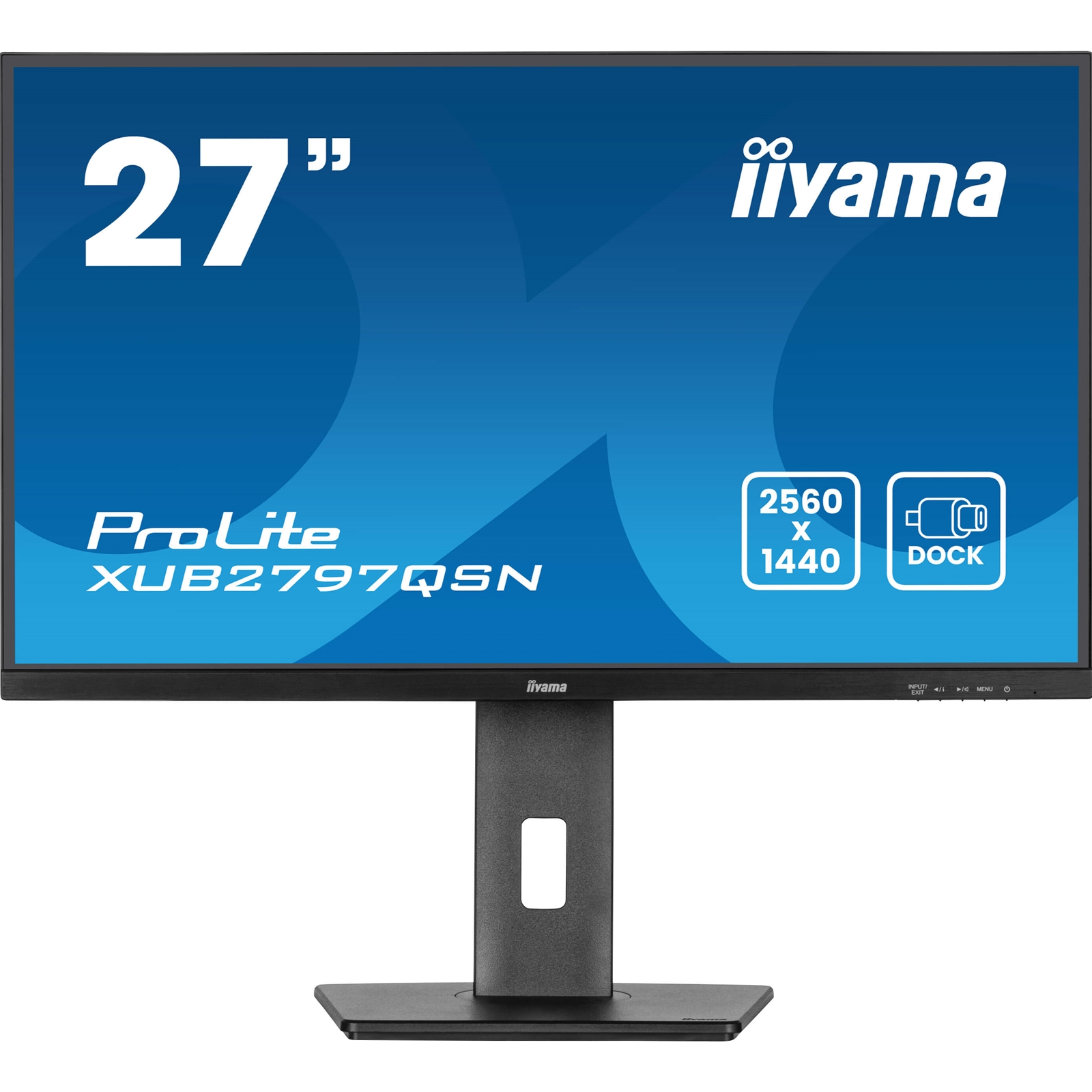

iiyama ProLite XUB2797QSN-B2 27" QHD IPS technology panel with USB-C dock and RJ45 (LAN)

Overview

iiyama ProLite XUB2797QSN-B2

Equipped with a USB-C dock connector, the XUB2797QSN allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. QHD resolution, high contrast and brightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 150mm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets.

USB-C Dock

• The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
• *Functions vary depending on your laptop USB-C support.

IPS Technology

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

QHD

With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.

Speakers

This LED monitor is equipped with two high quality stereo speakers.

Specifications

DISPLAY CHARACTERISTICS

Design

3-side borderless.

Diagonal

27", 68.5cm

Panel

IPS Panel Technology LED, matte finish.

• Native resolution2
• 560 x 1440 @100Hz (3.7 megapixel QHD)

Aspect ratio

16:9.

Panel brightness

300 cd/m²

Static contrast

1300:1.

Advanced contrast

80M:1.

Response time (MPRT)

1ms.

Viewing zone

horizontal/vertical: 178 degrees/178 degrees, right/left: 89 degrees/89 degrees, up/down: 89 degrees/89 degrees.

Colour support

16.7mln (sRGB: 99%; NTSC: 72%).

Horizontal Sync

30 - 151kHz.

Viewable area

W x H596.7 x 335.7mm, 23.5 x 13.2"

Pixel pitch

0.233mm

Colour

matte, black (matte, black).

INTERFACES / CONNECTORS / CONTROLS

Signal input

• HDMI x1 (v.2.0)
• DisplayPort x1 (v.1.4)
• USB-C x1 (PD 65W)

Signal output

• DisplayPort x1 (Daisy Chain MST max. 2560 x 1440)
• USB HUBx4 (3x v.3.2 Gen 1 (5Gbps, 4.5W) 1x Type C (5Gbps, 15W))
• USB-C DOCKx1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit))

HDCP

yes.

Headphone connector

yes.

RJ45 (LAN)

x1.

FEATURES

Blue light reducer

yes.

Flicker free

yes.

Adaptive Sync support

yes.

Extra

i-Style colour.

OSD languages

EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL.

Control buttons

Power, Menu, Adjustment/Volume, Adjustment/Shortcut Menu, Input/Exit.

User controls

picture adjust (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellanous 1 (sharp and soft, video mode adjust, opening logo, RGB range), miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address), input select, audio settings (volume, mute).

Speakers

2 x 2W

ConvenienceKensington-lock prepared, DDC2B.

MECHANICAL

Display position adjustments

height, swivel, tilt, pivot (rotation both sides).

Height adjustment

150mm

Rotation (PIVOT function)

90 degrees.

Swivel stand

120 degrees; 60 degrees left; 60 degrees right.

Tilt angle

23 degrees up; 5 degrees down.

VESA mounting

100 x 100mm

Cable management system

yes.

ACCESSORIES INCLUDED

Cables

power, HDMI, DP, USB-C.

Other

quick start guide, safety guide.

POWER MANAGEMENT

Power supply unit

internal.

Power supply

AC 100 - 240V, 50/60Hz.

Power usage

26W typical, 0.5W stand by, 0.3W off mode.

SUSTAINABILITY

Regulations

TCO Certified, CE, TUV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA.

Energy efficiency class (Regulation (EU) 2017/1369)

E

EPEAT

Silver. EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Silver certification means the monitor meets all required criteria plus at least 50% of the optional requirements. EPEAT Silver is valid in countries where iiyama registers the product. Please visit www.epeat.net for the registration status in your country.

REACH SVHC

above 0.1%: Lead.

Warranty

5 years (for details and eligible countries please check the Warranty section of our website).

DIMENSIONS / WEIGHT

• Product dimensions W x H x D613.5 x 400.5 (550.5) x 209.5mm
• Box dimensions W x H x D679 x 427 x 130mm
• Weight (without box)6.1kg
• Weight (with box)8.7kg
