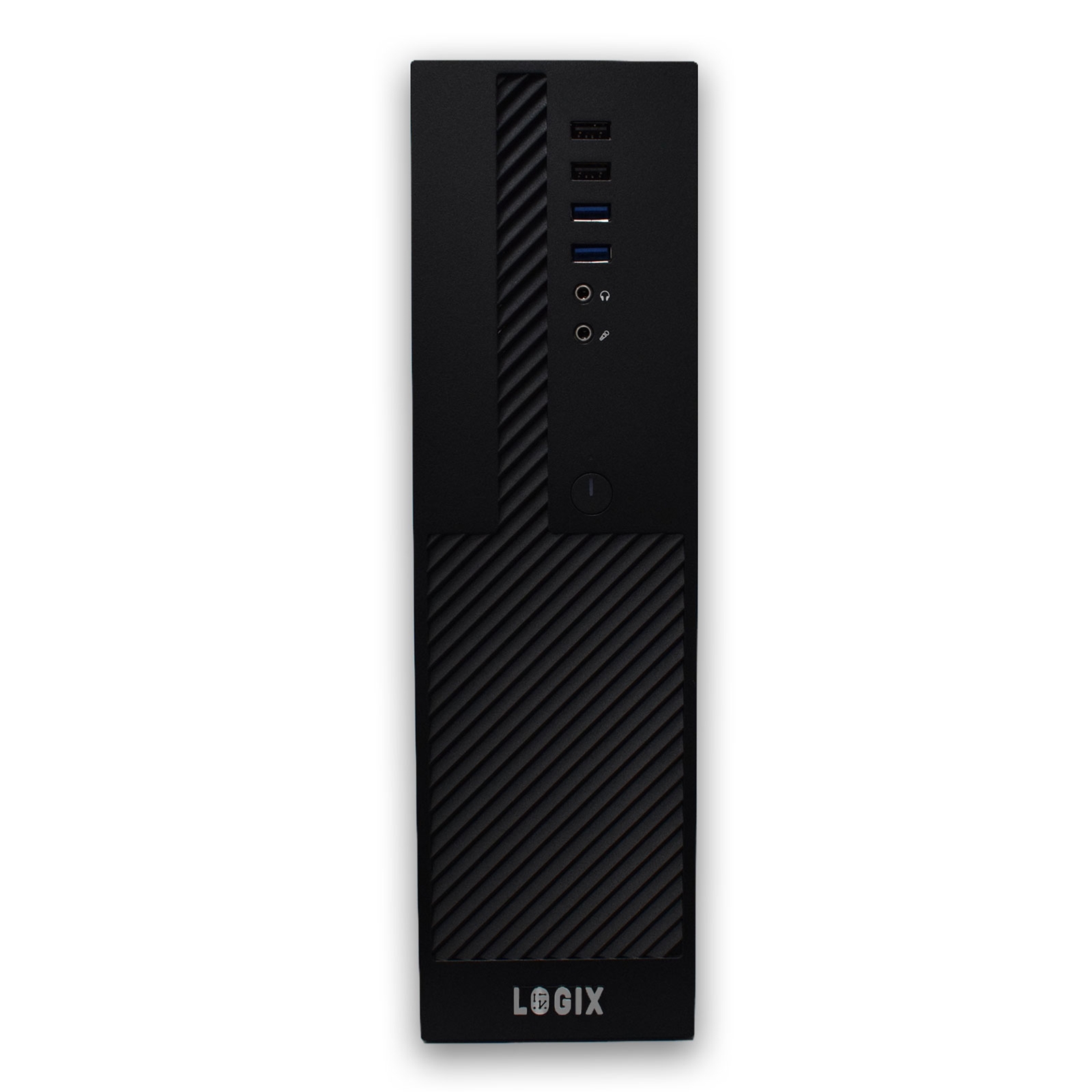

LOGIX Intel Core Ultra 5 10 Core

Overview

Be Future Ready for AI

Prepare for the next era of PC gaming with an Intel Core Ultra processor-based AI PC. Unlock better streaming and gaming performance. Offload AI tasks like background removal, audio optimisation, and auto-framing to the NPU so you can stream and game smoothly.

Main Features

Compact & Stylish Case

The discreet LOGIX small form case fits perfectly in any home setup—small enough to save space, yet roomy enough for powerful components and efficient cooling.

Fast & Reliable Performance

Powered by the latest Intel Ultra Core 5 processor with 10 cores and 10 threads, it runs at a base speed of 2.70GHz and can boost up to 4.90GHz—ideal for multitasking, streaming, and everyday computing.

Smooth Multitasking

Comes with 16GB of ultra fast Kingston DDR5 memory, giving you plenty of speed for browsing, working, and entertainment. You can upgrade later if needed.

Superfast Storage

A 500GB Kingston PCIe 4.0 NVMe SSD means lightning-fast boot times, quick file access, and smooth performance—much faster than traditional hard drives.

Whether you're working from home, browsing the web, watching movies, or managing family tasks, the LOGIX U1-516P delivers smooth, reliable performance. It’s built with care in the UK, combining quality components with a clean, professional look—no flashy lights, just solid performance.

Why It’s Great for Home Use

Quiet & Compact – Fits easily on or under a desk without taking up space. Ready to Go – Comes with Windows 11 Pro pre-installed and updated. No bloatware, so you get a clean, fast experience from the start. Secure & Stable – Wired-only internet connection helps reduce online threats. Plug & Play – Includes a Logitech MK120 keyboard and mouse so you can get started right away. Built to Last: With trusted brands and high build standards, this PC is designed to be futureproof and reliable. It even comes with a full 3-year warranty for peace of mind.

Specification:

• Operating System: Windows 11 Pro
• Processor: Intel Ultra Core 5 225
• Memory (RAM): Kingston Technology 16GB DDR5 (upgradeable to 64GB DDR5)
• Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
• Graphics: Intel Graphics (maximum resolution 7680 x 4320)
• Motherboard: Gigabyte H810M Ultra Durable Motherboard
• Case: LOGIX Small Form Factor
• Connections:
• Front –
• 2 x USB-A 3.0
• 2 x USB-A 2.0
• 3.5mm HD microphone & audio
• Back:
• 1 x DisplayPort
• 1 x HDMI
• 2 x USB-A 3.2 Gen 1
• 4 x USB-A 2.0
• 1 x RJ-45 Ethernet
• 3 x 3.5mm Audio
• Networking:
• Wired: Realtek 1Gbps GbE LAN
• Peripherals: Logitech MK120 Wired Keyboard & Mouse
• Warranty: 3 years - parts and collection included (UK mainland only)

Processor

Intel Core Ultra 5 225 2.7Ghz up to 4.9GHz 10 Core, 10 Threads, 20MB Cache Integrated Graphics.

Processor Cores

10

Processor Threads

10

Core Clock Speed

2.70GHz

Core Boost Speed

4.90GHz

• Total Cores: 10
• # of Performance-cores: 6
• # of Efficient-cores: 4
• # of Low Power Efficient-cores: 0
• Total Threads: 10
• Max Turbo Frequency: 4.9 GHz
• Performance-core Max Turbo Frequency : 4.9 GHz
• Efficient-core Max Turbo Frequency: 4.4 GHz
• Performance-core Base Frequency: 3.3 GHz
• Efficient-core Base Frequency: 2.7 GHz
• Cache: 20 MB Intel Smart Cache
• Total L2 Cache: 22 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 121 W
• Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes

NPU Specifications

NPU Name: Intel AI Boost. NPU Peak TOPS (Int8): 13. Sparsity Support: Yes. Windows Studio Effects Support: Yes. AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN.

Memory

• Kingston ValueRAM KVR56U46BS8-16 16GB (1x 16GB) DIMM System Memory, 5600MHz, DDR5, CL46
• Voltage: 1.10V
• Latency Timing: CL46
• Speed: 5600MT/s (PC5-44800)
• 1 x 16GB DIMM Memory
• Intel XMP Profile Support

Memory Configuration

• 1 x 16GB
• 2 Lanes (1 occupied)

SSD Drive

Kingston NV3 (SNV3S/500G) 500GB NVMe SSD, M.2 Interface, PCIe Gen4, 2280. Data storage life. 160 TBW MTBF 1,500,000 hours. Interfaces/Ports. PCIe Gen4 x4 NVMe.

Format

Gen4 x4 NVMe.

Max Read/Write Speeds

Read: Up to 6000MB/S. Write: Up to 2200MB/S.

Hard Drive

No Additional Drive Fitted.

Optical Drive

No Optical Drive Fitted.

Graphics

• GPU Name: Intel Graphics
• Graphics Base Frequency: 300 MHz
• Graphics Max Dynamic Frequency: 1.8 GHz
• GPU Peak TOPS (Int8): 4
• Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
• Xe-cores: 2
• Max Resolution (HDMI): 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS), (7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
• Max Resolution (DP): 7680 x 4320 @ 60Hz
• Max Resolution (eDP) - Integrated Flat Panel), 3840 x 2400 @ 120Hz
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3
• H.264 Hardware Encode/Decode: Yes
• H.265 (HEVC) Hardware Encode/Decode: Yes
• AV1 Encode/Decode: Yes
• Intel Quick Sync Video: Yes
• # of Displays Supported: 2 Native (4 via daisy chain)
• Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes
• AI Software Frameworks Supported by GPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebGPU

Graphics Card I/O

No Graphics Card Fitted. Uses Intel On-Chip Graphics.

Operating System

Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date. No Bloatware.

Card Reader

No Card Reader Fitted.

Networking

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Power Supply

300w TFX Pre-Fitted PSU.

Motherboard

Gigabyte H810M K Intel 1851 Socket Motherboard, Micro ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port.

Expansion Slot

• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage

• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Rear I/O

• 1 x DisplayPort
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Internal I/O

1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 1 x system fan header. 1 x M.2 Socket 3 connector. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x USB 3.2 Gen 1 header. 1 x USB 2.0/1.1 header. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only). 1 x serial port header. 1 x Clear CMOS jumper.

Chassis

LOGIX Small Form Purpose Built Robust Chassis.

Drive Bays

• 5.25" x 0
• 3.5" x 1
• 2.5" x 2

IO Ports

2 x USB 3.0. 2 x USB 2.0. HD Mic. HD Audio. Power.

Cooling

1 x 80mm fan included.

Dimensions

321mm x 95mm x 283mm (W x H x D).

Package Weight

6.9 kg.

Warranty

3 Years Parts & Labour Including Collect and Return (UK mainland only).

Warranty Information:
Please note: Any warranty information on this page relates to manufacturer's warranty, which may require you to deal directly with the manufacturer directly.

SimplyFixIt offer a 1-year return-to-shop warranty on all new products listed here.
