LOGIX Intel Core Ultra 7 AI Powered 20 Core

Overview

Whether you're building an AI-powered workstation, a CCTV monitoring hub, or simply need a reliable, high-performance PC for your home office, the LOGIX CCT-U733P is built to handle it all — quietly, efficiently, and securely.

Smart Power for Work, Security & Everyday Use

The LOGIX CCT-U733P is a powerful, desktop PC built for modern home offices, small businesses, and CCTV monitoring setups. Whether you're managing multiple security feeds, working across several apps, or tapping into AI-powered tasks, this system is designed to keep up — quietly and efficiently.

Powered by Next-Gen Intel Core Ultra

Featuring the Intel Core Ultra 7 265K processor with 20 cores and 20 threads, this PC delivers ultra-responsive performance for multitasking and productivity. Its built-in AI NPU offloads background tasks like noise filtering and auto-framing, freeing up your CPU and GPU for smoother performance overall.

Built for Multi-Screen CCTV & Business Use

Equipped with an NVIDIA GeForce RTX 5060 graphics card, the CCT-U733P supports up to 4 monitors and 16 camera feeds in up to 8K resolution. Perfect for CCTV monitoring or high-resolution multi-screen work, it offers 1 HDMI and 3 DisplayPort outputs for flexible display setups.

Fast Storage & Clean Setup

A 1TB Kingston NVMe SSD ensures fast load times and quick access to your files. Preinstalled with Windows 11 Pro, fully updated and bloatware-free, the system is ready to go out of the box — no unnecessary software to slow you down.

Built in the UK, Backed by Warranty

Hand-assembled in the UK with trusted components, the CCT-U733P is backed by a 3-year parts and collection warranty for total peace of mind.

Key Features

Processor: Intel Core Ultra 7 265K (20 cores, up to 5.5GHz, built-in AI NPU). Graphics: NVIDIA GeForce RTX 5060 (supports up to 4 monitors / 8K resolution). Storage: 1TB Kingston NVMe SSD. Connectivity: Gigabit Ethernet. OS: Windows 11 Pro (preinstalled, bloatware-free). Warranty: 3-Year parts and collection warranty.

Specification:

• Operating System: Windows 11 Pro
• Processor: Intel Core Ultra 7 - 3.90GHz (5.50GHz boost) 20-cores & 20 threads
• Memory (RAM): Kingston Technology 32GB DDR5 (upgradeable to 128GB DDR5 – additional memory slot available)
• Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSD
• Storage Expansion: 2 x 3.5"/2.5" Combo & 2 x 2.5"
• Graphics: Gigabyte Nvidia GeForce RTX 5060 OC 8GB Graphics Card with 1 x HDMI 2.1 & 3 x DisplayPort 1.4 ports
• Motherboard: B860 EAGLE WIFI6E
• Case: Be Quiet 501 Pure Base
• Connections:
• Front –
• 2 x USB 3.0
• 1 x HD Mic/Audio
• Back:
• 1 x PS/2 keyboard/mouse port
• 3 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 4 x USB 2.0/1.1 ports on the back panel
• 2 x RJ-45 port
• 2 x antenna connectors (2T2R)
• 3 x audio jacks

Networking:

• Wired:2 x 2.5Gbps GbE LAN
• Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard
• Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Warranty: 3 years - parts and collection included (UK mainland only).

Processor

Intel Core Ultra 7 265KF 20 Core, 20 Threads, 3.9GHz up to 5.5GHz Arrow Lake Processor LGA 1851, 36MB Cache, 125W, 250W Maximum Turbo Power.

Processor Cores

20

Processor Threads

20

Core Clock Speed

3.90GHz

Core Boost Speed

5.50GHz

NPU Specifications

NPU Name: Intel AI Boost. NPU Peak TOPS (Int8) 13. Sparsity Support Yes. Windows Studio Effects Support Yes. AI Software Frameworks Supported by NPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN.

Security & Reliability

• Intel Standard Manageability (ISM) : Yes
• Intel Control-Flow Enforcement Technology : Yes
• Intel AES New Instructions : Yes
• Secure Key : Yes
• Intel OS Guard : Yes
• Intel Trusted Execution Technology : Yes
• Execute Disable Bit : Yes
• Intel Boot Guard : Yes
• Mode-based Execute Control (MBEC) : Yes
• Intel Virtualization Technology : Yes

Memory

• Kingston KCP556UD8-32 32GB (1x 32GB) DIMM System Memory, 5600MHz, DDR5, CL46, Intel XMP
• Voltage: 1.1V
• Speed: 5600MT/s
• 1 x 32GB DIMM Memory
• Intel XMP Profile Support

Memory Configuration

• 1 x 32GB
• 4 Lanes (1 occupied)

SSD Drive

Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD, M.2 Interface, PCIe Gen4, 2280, Read 6000 MB/s, Write 4000 MB/s. Form Factor. M.2 2280. Interface. PCIe 4.0 x4 NVMe. Capacity. 1TB Sequential Read. 6000MB/s. Sequential Wrire. 4000MB/s. NAND 3D Endurance (Total Bytes Written). 320TB

Format

Gen4 x4 NVMe.

Max Read/Write Speeds

Read: Up to 6000MB/S. Write: Up to 400MB/S.

Hard Drive

• No Additional Drive Fitted
• 2 x 2.5" or 3.5" Drive Bays Available For Expansion

Optical Drive

No Optical Drive Fitted.

Graphics

Gigabye NVIDIA GeForce RTX 5060 WINDFORCE MAX OC 8G GDDR7 Graphics Card, 3840 CUDA Cores, 2512 MHz Core Clock, Dual Fan.

Core Clock. 2512 MHz (Reference card : 2497MHz). CUDA Cores. 3840 Memory Clock. 28 Gbps. Memory Size. 8 GB Memory Type. GDDR7 Memory Bus. 128 bit. Card Bus. PCI-E 5.0. Digital max resolution. 7680x4320. Multi-view. 4

Graphics Card I/O

• DisplayPort 1.4a x 3
• HDMI 2.1 x 1

Operating System

Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date.

Card Reader

No Card Reader Fitted.

Networking

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) - On Motherboard
• 1 x TP-Link TX201 2.5 Gigabit PCIe Network Adapter
• Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard
• Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Power Supply

• DeepCool PF500 500W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS White, Non Modular, UK Plug
• 1 x Main Power Connector 24-Pin (20+4)
• 1 x EPS 12V Connector 8-Pin (4+4)
• 2 x PCIE 6+2 Pin (x1)
• 6 x SATA
• 2 x 4-Pin Peripheral

Motherboard

Gigabyte B860 EAGLE WIFI6E Intel 1851 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E.

Expansion Slot

• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
• 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)

Storage

• CPU:
• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Rear I/O

1 x PS/2 keyboard/mouse port. 1 x HDMI port (Note). 1 x DisplayPort (Note). 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support. 1 x USB 3.2 Gen 2 Type-A port (red). 4 x USB 2.0/1.1 ports. 2 x antenna connectors (2T2R). 1 x RJ-45 port. 3 x audio jacks.

Internal I/O

1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 1 x CPU fan/water cooling pump header. 2 x system fan headers. 2 x system fan/water cooling pump headers. 3 x addressable RGB Gen2 LED strip headers. 1 x RGB LED strip header. 3 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x S/PDIF Out header. 1 x USB Type-C® header, with USB 3.2 Gen 1 support. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only). 1 x serial port header. 1 x Q-Flash Plus button. 1 x reset jumper. 1 x Clear CMOS jumper.

Chassis

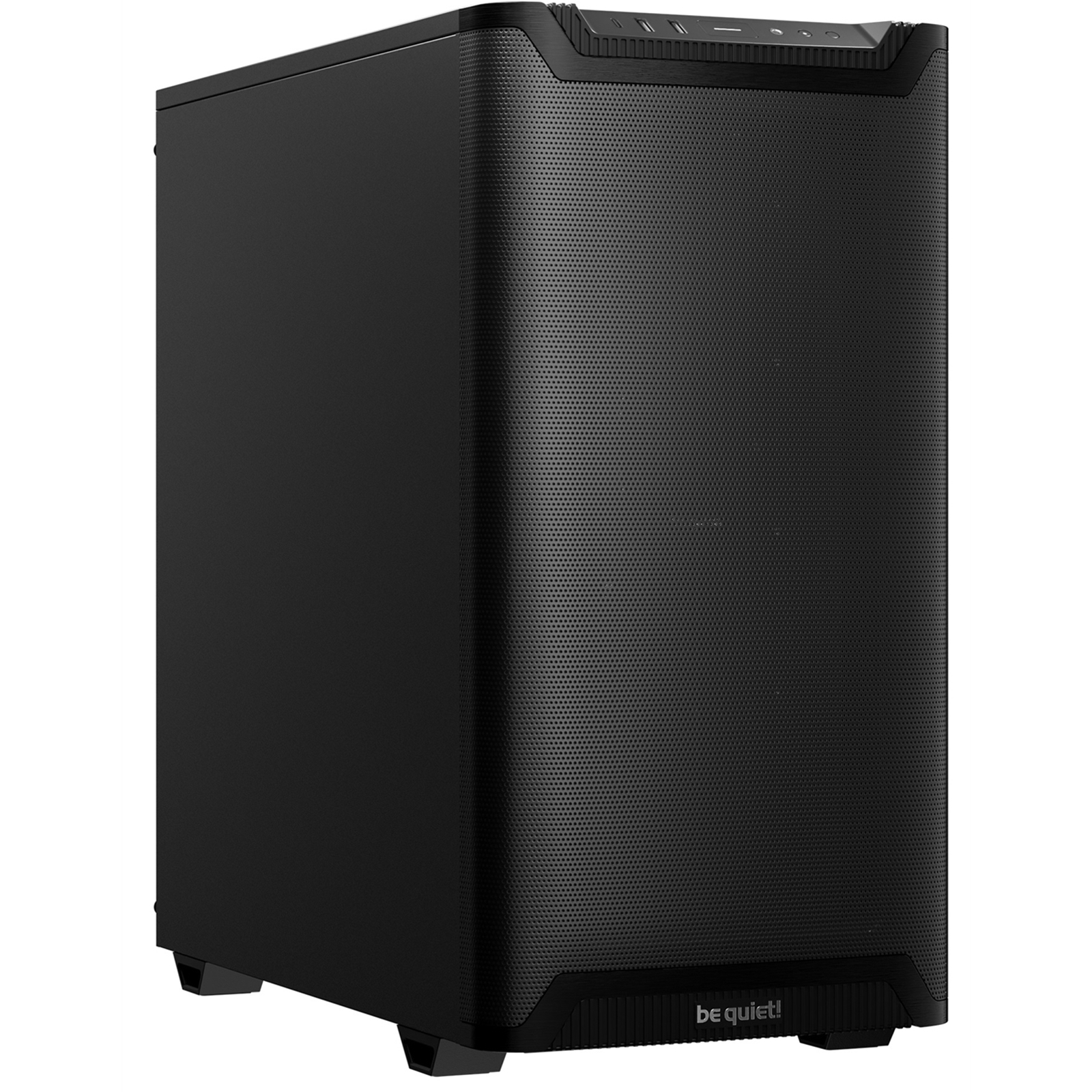

be quiet! Pure Base 501 Airflow Black ATX Mid Tower Case with USB-A, USB-C, 2 x Pure Wings 2 140mm Black PWM Fans, Sleek Front Panel and Airflow Cover.

Drive Bays

Internal 3.5": 2. Internal 2.5": 5.

IO Ports

2 x USB 3.0. 1 x USB-C. 1 x Audio. Power. Reset.

Cooling

• Front: Up to 2 x 140mm or 3 x 120mm (2 x 140mm Pure Wings 3 fans preinstalled)
• Top: Up to 2 x 120mm or 2 x 140mm
• Rear: 1 x 120mm or 1x 140mm

Dimensions

463mm x 450mm x 231mm (L x W x H).

Package Weight

8.9 kg.

Warranty

3 Years Parts & Labour Including Collect and Return (UK mainland only).

Warranty Information:
Please note: Any warranty information on this page relates to manufacturer's warranty, which may require you to deal directly with the manufacturer directly.

SimplyFixIt offer a 1-year return-to-shop warranty on all new products listed here.
