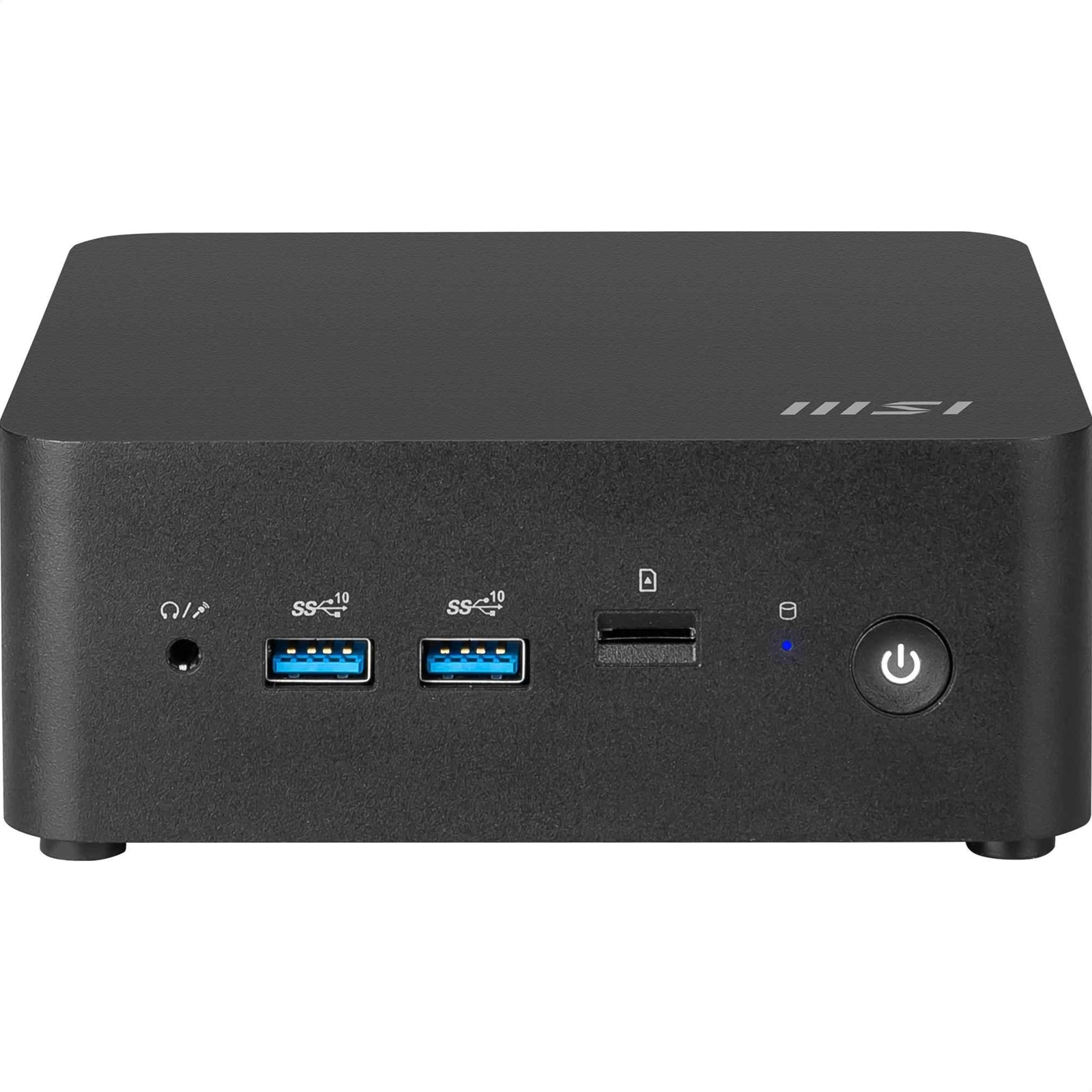

MSI Cubi NUC 1M
Key highlights
- Processor: Intel Core 5
- Processor Cores: 10
- Memory Type: 2x DDR5
- Max Memory: 64GB
- Storage M.2 Slots: 2
- Storage 2.5 Inch Slots: 1
- VESA: Included
Manufacturer Supplied Images:
Please note, these images are supplied by the manufacturer and are for illustration purposes only. If you have any queries about this product, please contact us and we will be happy to help.
Msi
£480.18 including VAT
These products are available to buy from our Edinburgh shop. They are held in our central warehouse, and take 1-2 days to bring into stock. We have a range of Windows Computers, Laptops & Apple Macs in the shop, so if you are looking for a new computer, it's definitely worth popping in for a chat.
Overview
Mini Yet Powerful
The Cubi NUC is the ideal solution for confined spaces. It confidently handles a myriad of tasks, from basic computing to multimedia streaming and multitasking, leveraging their compact size.
Tailored for Professional Users
Equipped with Intel Core 5 Processor 120U, it provides faster and more reliable performance, which allows users to multitask a variety of applications with ease.
VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.
Specification
Model Name
Cubi NUC 1M i5 120U BB.
CPU
Intel Core 5 Processor 120U.
Cooling System
Air cooling.
Chipset
SoC.
Graphics
Intel Graphics.
System Memory
- Max 64GB
- 2 Slots
- SO-DIMM
- DDR5 5600 MHz
Storage Slots
2x M.2 slots. 1x 2.5" Drive Bays.
LAN
2x Intel I226-V.
Wireless LAN
- INTEL Wi-Fi 6E AX211.NGWG.NV
- (Wi-Fi 6E - 802.11ax 2x2+BT)
BLUETOOTH
5.3.
VESA Mount
100 x 100 mm
I/O (FRONT)
- 1x Mic-in / Headphone-out Combo
- 2x USB 10Gbps Type A
- 1x Micro-SD card Reader
I/O (REAR)
- 2x USB 10Gbps Type A
- 1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
- 2x RJ45 LAN (2.5G)
- 1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
- which supports the MSI Power Link
- 1x DC Jack
- 1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out
- 15W)
- 1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out
- 15W / PD-in up to 100W)
Side
1x External Power Switch Slot. 1x Kensington Lock Slot.
AC Adapter / PSU
120W
Operation System
None.
Dimension (WxDxH)
135.6 x 132.5 x 50.10 (mm).
Net/Gross Weight (kg)
0.625/1.45 kg.
Volume
0.826 Liter.
Certificates
FCC(Class B). CB/CE. UL(CUL). BSMI VCCI RCM(C-Tick).
Accessories
1x UK Power Cord. 1x AC Adaptor. 2x Quick Guide. 1x VESA Mount kit. 1x Power Switch.
